Specification
|
Camera
|
|||
|
Image Sensor
|
1/3.0” 3Megapixel CMOS
|
||
|
Effective Pixels
|
1728(H) x 1728(V)
|
||
|
Min. Illumination
|
Color 0.1Lux@F2.0,
Black/White 0.01Lux@F2.0 |
||
|
IR Distance
|
Night visibility up to 10m
|
||
|
Day/Night
|
Auto(ICR)/Color/B&W
|
||
|
WDR
|
DWDR
|
||
|
Lens&FOV
|
FOV180
|
||
|
Network
|
|||
|
Alarm Trigger
|
Button triggering, PIR detection
|
||
|
Wireless Security
|
64/128-bit WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
|
||
|
Communication Protocol
|
HTTP, DHCP, DNS, TCP/IP
|
||
|
Interface Protocol
|
Private
|
||
|
Wireless
|
2.4G WIFI (IEEE802.11b/g/n/ax)+Bluetooth 5.0
|
||
|
Supported Mobile Phone OS
|
iOS 9 or later, Android 5 or later
|
||
|
Security
|
|||
|
Video&Audio
|
|||
|
Compression
|
H.264
|
||
|
Bit Rate
|
32Kbps~2Mbps
|
||
|
Frame Rate
|
1~25fps
|
||
|
Dual Stream
|
Yes
|
||
|
Audio Input/Output
|
Built-in mic/speaker
|
||
|

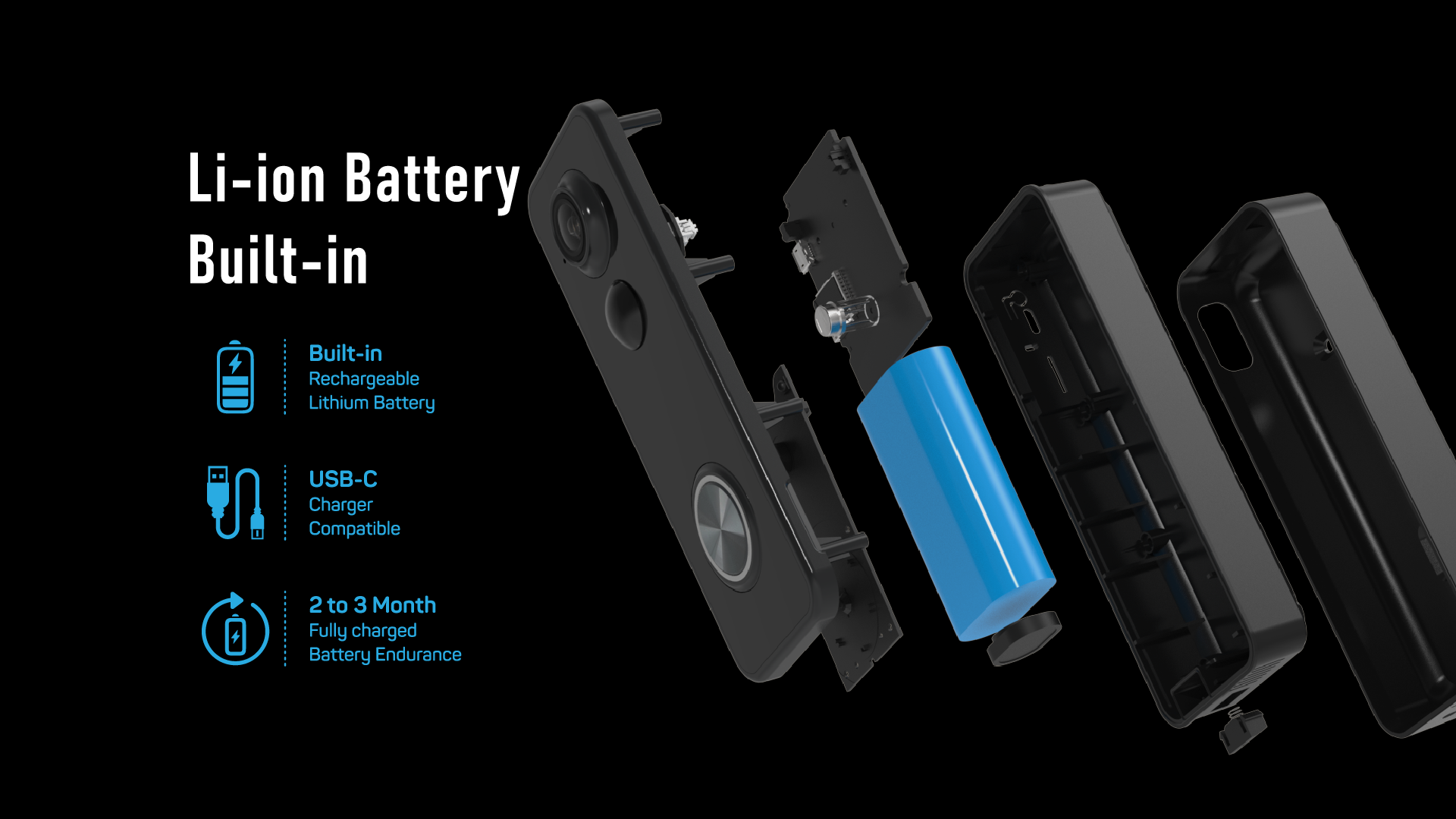

Battery&PIR
|
|||
|
Capacity
|
5200mAh rechargeable Li batteries
|
||
|
Stand-by Current
|
200-800 µA (average)
|
||
|
Working Current
|
150-200 mA (IR off)
|
||
|
Stand-by Time
|
6 months
|
||
|
Working Time
|
2-3 months (10 times wake up per day)
|
||
|
PIR Detection Range
|
Max. 5m
|
||
|
PIR Angle
|
100°
|
||
|
General
|
|||
|
Operating Temperature
|
-20 °C to 50 °C
|
||
|
IP Rating
|
IP65
|
||
|
Power Supply
|
DC 5V/1A
|
||
|
Power Consumption
|
Max. 2W
|
||
|
Wireeless Chime
|
Support 433MHz
|
||
|
Storage
|
SD card(Max.128GB), Cloud storage
|
||
|
Dimensions
|
56.2x38x147.5mm
|
||
